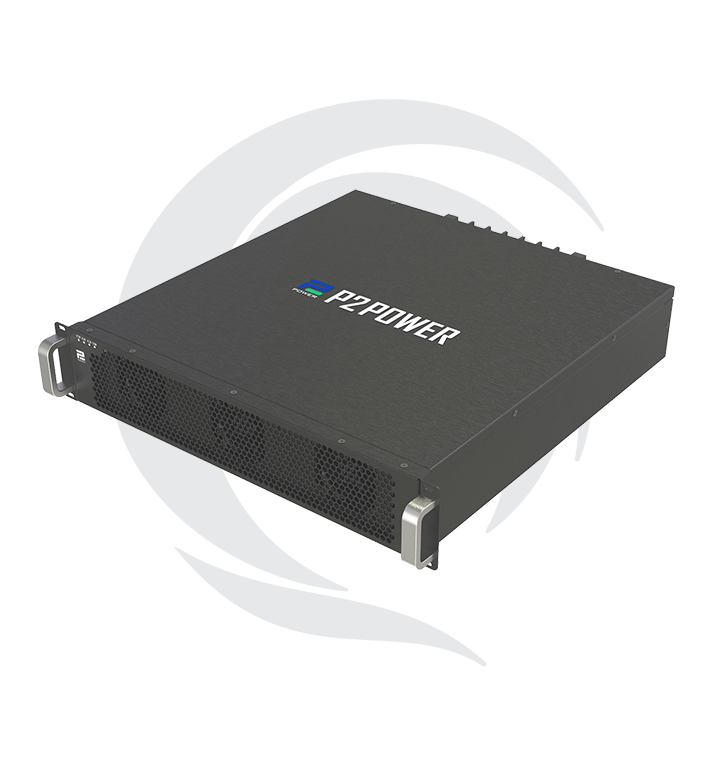

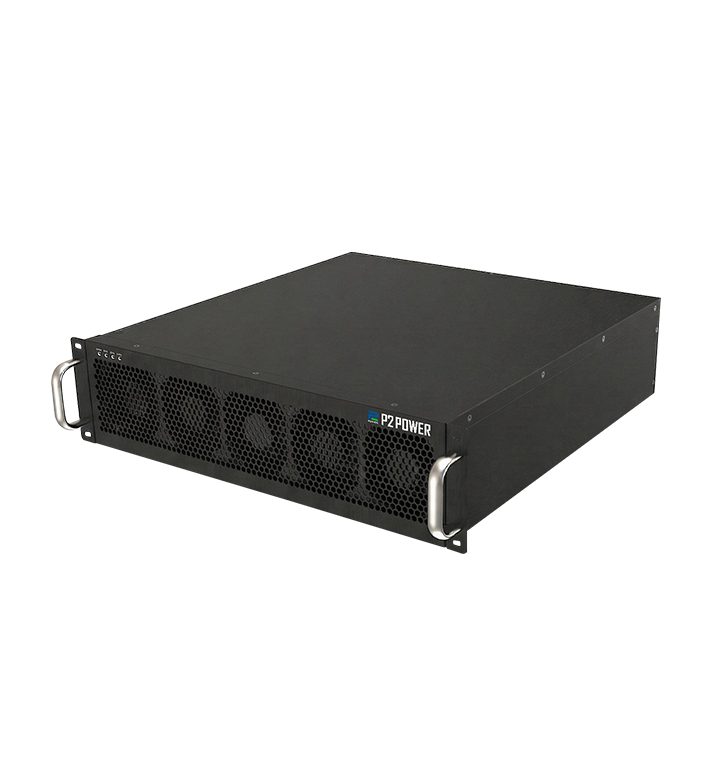

Technical Specifications
| Voltage Level(V) | 400V | |||||
| Capacity(A) | 10/15/20 | 30 | 50 | 100 | 150 | 200 |
| Dimensions (W*D*H) | 326*357*45 | 350*367*50 | 326*380*70 | 500*460*100 | 500*530*100 | 500*530*130 |
| System Parameters | ||||||
| Operating Voltage | 304-460V | |||||
| Operating Frequency | 50Hz/60Hz (-10%~ +10%) | |||||
| Number of Parallels | Unlimited (12 Modules per HMI) | |||||
| Current Transformers | 50 : 5 ~ 30000 : 5 | |||||
| Efficiency | >97.5% | |||||
| Phase System | 3P3W / 3P4W | |||||
| Performance Indicator | ||||||
| Compensate for Harmonics | 2~50th Odd Harmonics | |||||
| Controller | 100% Full FPGA, 16 CPUs parallel computation | |||||
| Reactive Power | -1~+1 adjustable (Within the capacity of the device) | |||||
| Three Phase Imbalance | 100% The imbalance is fully compensated | |||||
| Switching Frequency | 80kHz | |||||
| Full Response Time | ≤5ms , instant response <50us | |||||
| Active Power Loss | ≤2.5% | |||||
| Communication Protocols | ||||||
| Methods of Communication | RS485 (Modbus RTU) | |||||
| Host Computer Software | Yes, all parameters can be set by the host computer | |||||
| Fault Alarm | Yes, up to 500 alarm messages can be recorded | |||||
| Monitor | Support independent monitoring of each module / centralized monitoring of the entire system | |||||
| Mechanical Properties | ||||||
| Heat Dissipation | Intelligent air cooling | |||||
| Noise | ≤70dB | |||||
| Protection Features | There are more than 20 kinds of protection such as overvoltage, undervoltage, overheating, overcurrent, short circuit, etc | |||||
| CT Installation Location | Load side / Grid side (Optional) | |||||
| Wall Mount Size | Same size as the rack module | |||||
| Module Weight | 19.5kg (100A) / 23.5kg (150A) / 30kg (200A) | |||||
| Color | 7035 Fine orange texture spray painted | |||||
| Environmental Requirements | ||||||
| Operating Temperature | -10℃ ~ +50℃ | |||||
| Elevation | <5000 meters (More than 1000 meters, for every 100 meters of additional elevation, the power is reduced by 1%.) | |||||
| Relative Humidity | <95%, No condensation | |||||
| Ingress Protection | Module IP20 | |||||
| Pollution Resistance | Level 2 (Customizable level 3) | |||||
