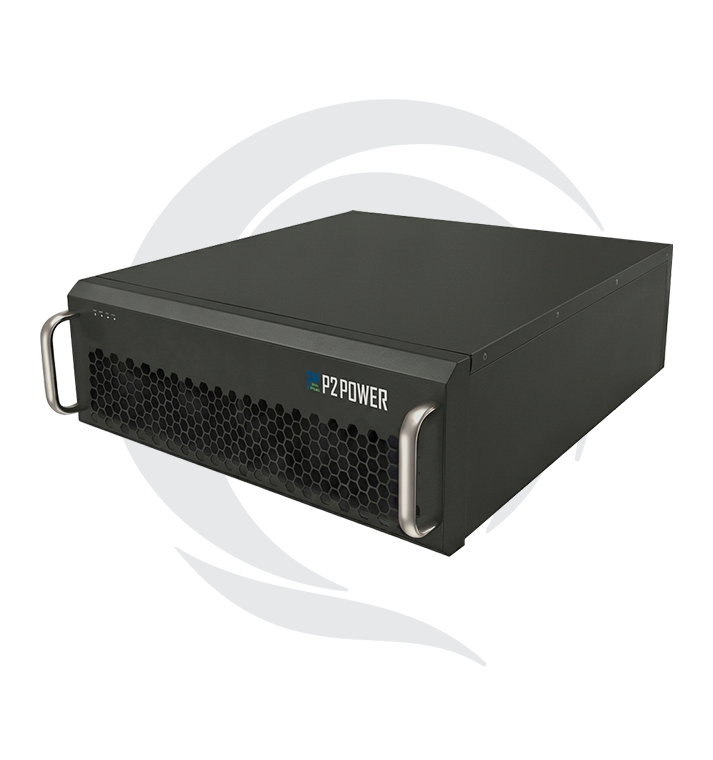

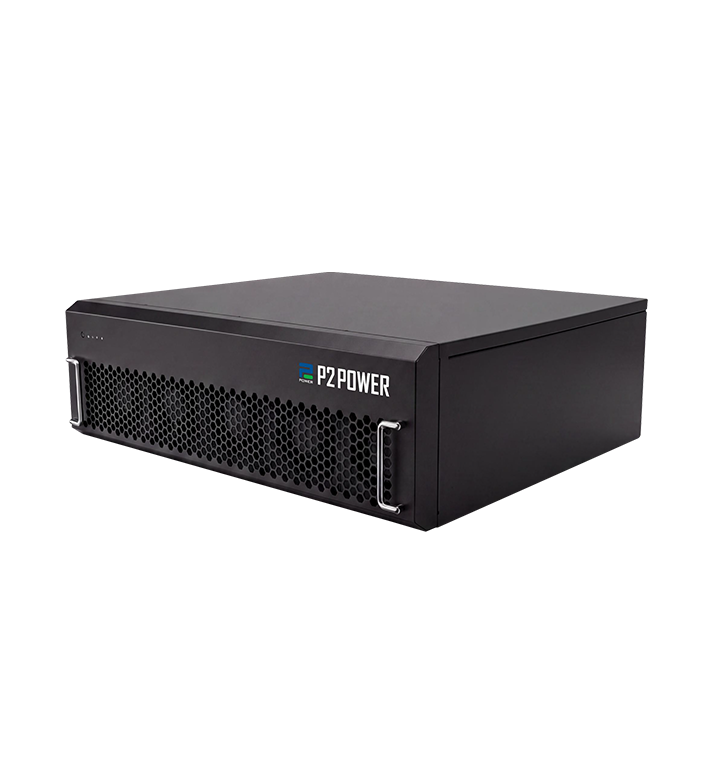

Technical Specifications
| Voltage Level (V) | 220V | 400V | 480V | 690V | 800V |
| Capacity (A) | 50/75/100/150/200 | 35/50/75/100/150/200 | 50/100 | 50/100 | 75/100 |
| Dimensions (W*D*H) | 480*440*130 (35/50A) | 480*530*200 (50/75/100A)680*530*200 (50/75/100/150/200A) | 680*550*200 | |||
| System Parameters | |||||
| Operating Voltage | 190-264V | 304-460V | 440-500V | 500-750V | 680-920V |
| Operating Frequency | 50Hz/60Hz (-10% ~ +10%) | ||||
| Number of Parallels | Unlimited (12 Modules per HMI) | ||||
| Current Transformers | 50 : 5 ~ 30000 : 5 | ||||
| Efficiency | >98.5% | ||||
| Phase System | 3P3W / 3P4W | ||||
| Performance Indicator | |||||
| Compensate for Harmonics | 2~50th Harmonics(Even harmonics require a voltage module rated at 690V/800V) | ||||
| Controller | 100% Full FPGA, 16 CPUs parallel computation | ||||
| Reactive Power | -1 ~ +1 adjustable(Within the capacity of the device) | ||||
| Three Phase Imbalance | 100% The imbalance is fully compensated(690V No compensation for three-phase unbalance function) | ||||
| Switching Frequency | 80kHz | ||||
| Full Response Time | ≤5ms , instant response <50us | ||||
| Active Power Loss | ≤1.5% | ||||
| Communication Protocols | |||||
| Methods of Communication | RS485 (Modbus RTU) | ||||
| Host Computer Software | Yes, all parameters can be set by the host computer | ||||
| Fault Alarm | Yes, up to 500 alarm messages can be recorded | ||||
| Monitor | Support independent monitoring of each module / centralized monitoring of the entire system | ||||
| Mechanical Properties | |||||
| Heat Dissipation | Intelligent air cooling | ||||
| Noise | ≤60dB | ||||
| Protection Features | There are more than 20 kinds of protection such as overvoltage, undervoltage, overheating, overcurrent, short circuit, etc. | ||||
| CT Installation Location | Load side / Grid side (Optional) | ||||
| Wall Mount Size | Same size as the rack module | ||||
| Module Weight | 17.5kg (35A) ; 26kg (50A/75A/100A) ; 32kg (50A/75A) ; 38.5kg (100A/150A) ; 45.5kg (200A) | ||||
| Color | 7035 Fine orange texture spray painted | ||||
| Environmental Requirements | |||||
| Operating Temperature | -20℃ ~ +55℃ | ||||
| Elevation | <5000 meters (More than 1000 meters, for every 100 meters of additional elevation, the power is reduced by 1%.) | ||||
| Relative Humidity | <95%, No condensation | ||||
| Ingress Protection | Module IP20 + Electronic Layer IP42(Customizable IP54 or IP65) | ||||
| Pollution Resistance | Level 2 (Customizable level 3) | ||||
