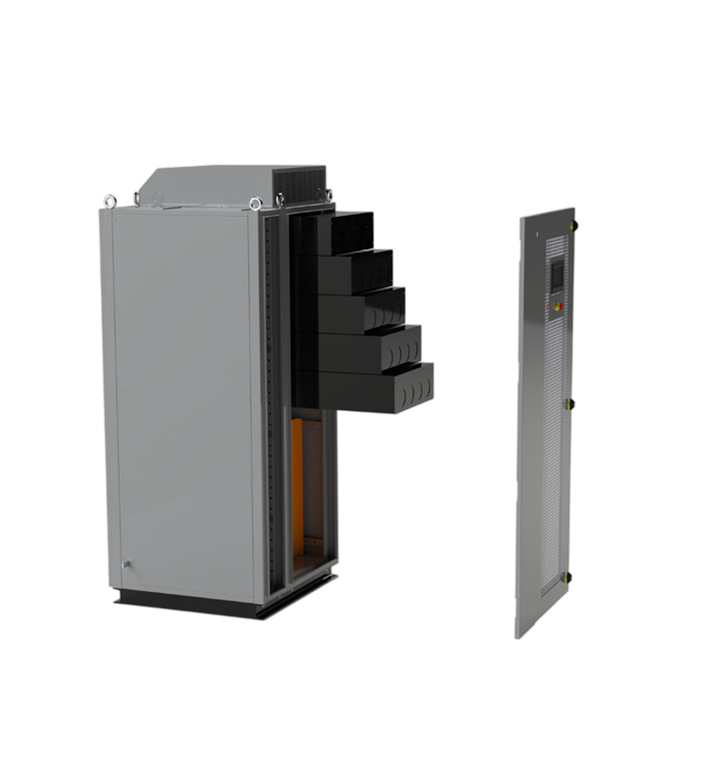

Technical Specifications
| Voltage Level(V) | 400V | |
| Capacity(A) | 100A | 150A |
| System Parameters | ||
| Operating Voltage | 304-460V | |
| Operating Frequency | 50Hz (-10%~ +10%) | |
| Number of Parallels | Unlimited (12 Modules per HMI) | |
| Current Transformers | 50 : 5 ~ 30000 : 5 | |
| Efficiency | >98% & THDi & THDv < 5% | |
| Phase System | 3P3W / 3P4W | |
| Performance Indicator | ||
| Compensate for Harmonics | 2-50th Harmonic & other unstable harmonics | |
| Controller | 100% Full FPGA, 16 CPUs parallel computation | |
| Three Phase Imbalance | 100% The imbalance is fully compensated (690V No compensation for three-phase unbalance function) | |
| Switching Frequency | 80kHz | |
| Full Response Time | ≤1ms | |
| Active Power Loss | ≤2% | |
| Communication Protocols | ||
| Methods of Communication | RS485 (Modbus RTU) | |
| Host Computer Software | Yes, all parameters can be set by the host computer | |
| Fault Alarm | Yes, up to 500 alarm messages can be recorded | |
| Monitor | Support independent monitoring of each module/centralized monitoring of the entire system | |
| Mechanical Properties | ||
| Heat Dissipation | Intelligent air cooling | |
| Noise | ≤60dB | |
| Protection Features | There are more than 20 kinds of protection such as overvoltage, undervoltage, overheating, overcurrent, short circuit, etc | |
| CT Installation Location | Load side | |
| 800*800*2200 Panel Max | 750A | |
| Module Weight/Dimension | 38.5kg (680*545*200) | |
| Color | 7035 Fine orange texture spray painted | |
| Environmental Requirements | ||
| Operating Temperature | -20℃ ~ +55℃ | |
| Elevation | <5000 meters (More than 1000 meters, for every 100 meters of additional elevation, the power is reduced by 1%.) | |
| Relative Humidity | <95%, No condensation | |
| Ingress Protection | Module IP20 + Electronic Layer IP42(Customizable IP54 or IP65) | |
| Pollution Resistance | Level 2 (Customizable level 3) | |
