In AC electrical networks, inductive loads such as motors, transformers, and magnetic equipment draw both active power and reactive power. The relationship between useful active power and total apparent power is represented by the power factor. A low power factor increases current demand and can result in higher losses and reduced utilization of electrical infrastructure.

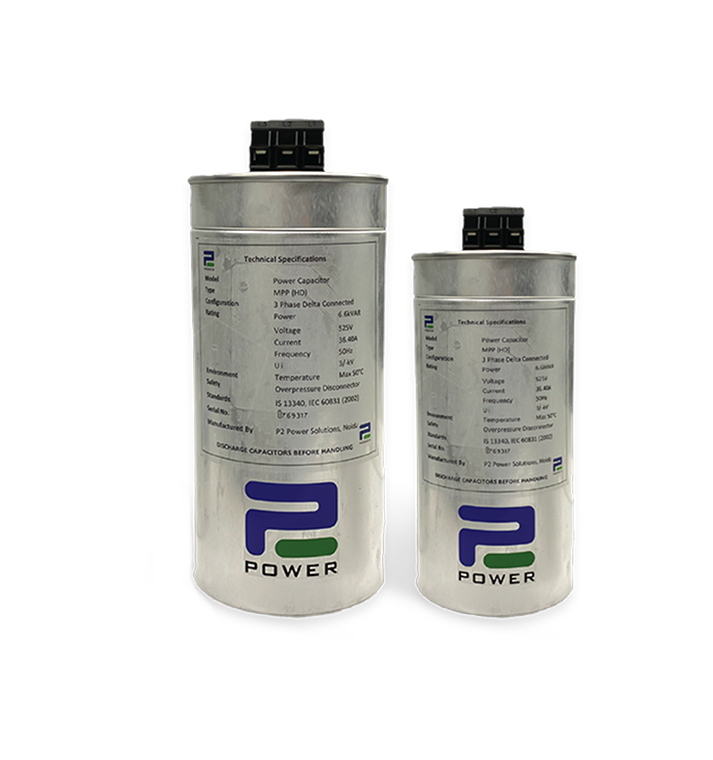

P2 Power MPP Capacitors are designed for reactive power compensation and power factor correction applications. These capacitors use Metallized Polypropylene (MPP) film technology, providing low dielectric losses, self- healing characteristics, and reliable operation in demanding electrical environments.
The polypropylene dielectric film is metallized using a thin conductive layer, creating a compact capacitor element with efficient electrical performance. The self-healing construction helps isolate localized dielectric faults, supporting operational reliability and extended service life.
| Standard | IS 13340-1/2, IEC 60831-1/2 |
| Rated Voltage | 400 - 525V |
| Rated Frequency | 50Hz / 60Hz |
| Over Voltage |
Un + 10% 8h in every 24h Un + 15% 30min in every 24h Un + 20% 5min in every 24h Un + 30% 1min in every 24h |
| Over Current | 2.2 × In |
| Capacitance Tolerance | -5 to 10% As per standard |
| Test Voltage Terminal | 2.15 × Un, AC 2s |
| Test Voltage, Terminal & Case | 2.15 × Un + 2kV or 3kVAC whichever is higher for 10s or 20% higher for 2s |
| Inrush Current | Up to 400 × In |
| Losses | < 0.20W / kVAr (Dielectric) | < 0.5W / kVAr (Total) |
| Casing | Cylindrical Al Can |
| Enclosure | IP20 |
| Mean Life Expectancy | 180,000 h |
| Temperature Class | -40 / 55°C |
| Cooling | Natural Air Cooled casing temp. max 80°C permitted on top of the can |
| Dielectric System | Metalized polypropylene film, self healing property |
| Impregnation | NPCB, Biodegradable neutral semi soft resin |
| Altitude | Max. 4000 meter above sea level |
| Relative Humidity | Max. 95% |
| Mounting Position | Vertical |
| Discharge Resistor | External 3 minutes, 75V |
| Safety Feature | Overpressure sensitive 3 phase disconnector |
Fixed Power Factor Correction
MPP capacitors can be installed as fixed compensation units for electrical loads that require a consistent amount of reactive power compensation.
Automatic Power Factor Correction
They can be integrated into APFC panels, where capacitor stages are automatically switched according to changing reactive power requirements.
Harmonic Filter Systems
MPP capacitors can form part of tuned or detuned harmonic-filtering systems when combined with appropriately selected reactors and other power-quality components.
