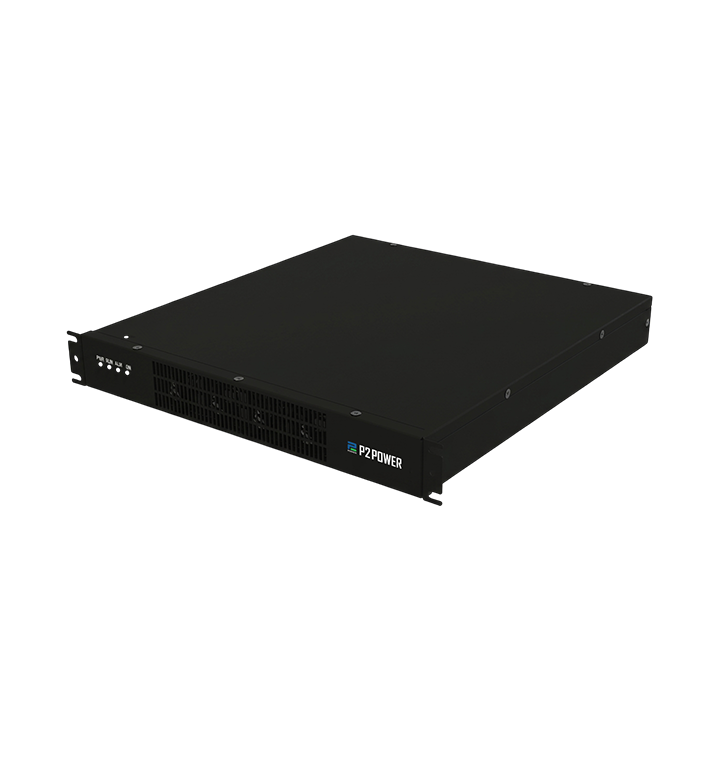

Technical Specifications
| Voltage Level(V) | 400V | ||||||
| Capacity(A) | 10A | 15A | 20A | 30A | 50A | 100A | 150A |
| System Parameters | |||||||
| Operating Voltage | 304-460V | ||||||
| Operating Frequency | 50Hz/60Hz (-10%~ +10%) | ||||||
| Number of Parallels | Unlimited (12 Modules per HMI) | ||||||
| Current Transformers | 50 : 5 ~ 30000 : 5 | ||||||
| Efficiency | >99% | ||||||
| Phase System | 3P3W / 3P4W | ||||||
| Harmonic Filtering Efficiency | Exceeds requirements of IEEE 519-2022 | ||||||
| Reactive Power Compensation | Adjustable from -1~+1 within capacity | ||||||
| Performance Indicator | |||||||
| Compensate for Harmonics | 2-50th Odd Harmonic | ||||||
| Controller | 100% Full FPGA, 16 CPUs parallel computation | ||||||
| Three Phase Imbalance | 100% The imbalance is fully compensated | ||||||
| Switching Frequency | 80kHz | ||||||
| Full Response Time | ≤5ms | ||||||
| Active Power Loss | ≤1% | ||||||
| Communication Protocols | |||||||
| Methods of Communication | RS485 (Modbus RTU) | ||||||
| Host Computer Software | Yes, all parameters can be set by the host computer | ||||||
| Fault Alarm | Yes, up to 500 alarm messages can be recorded | ||||||
| Monitor | Module and system monitoring supported | ||||||
| Mechanical Properties | |||||||
| Heat Dissipation | Intelligent air cooling | ||||||
| Noise | ≤60dB | ||||||
| Protection Features | There are more than 20 kinds of protection such as overvoltage,undervoltage, overheating, overcurrent, short circuit, etc | ||||||
| CT Installation Location | Load side | ||||||
| Module Dimensions | 326*45*357/30kg (480*200*530) | ||||||
| Color | RAL9005/7035 Fine orange texture spray painted | ||||||
| Environmental Requirements | |||||||
| Operating Temperature | -30℃ ~ +75℃ | ||||||
| Elevation | <5000 meters (More than 1000 meters, for every 100 meters ofadditional elevation, the power is reduced by 1%.) | ||||||
| Relative Humidity | <95%, No condensation | ||||||
| Ingress Protection | Module IP20 + Electronic Layer IP42 (Customizable IP54 or IP65) | ||||||
| Pollution Resistance | Level 2 (Customizable level 3) | ||||||
