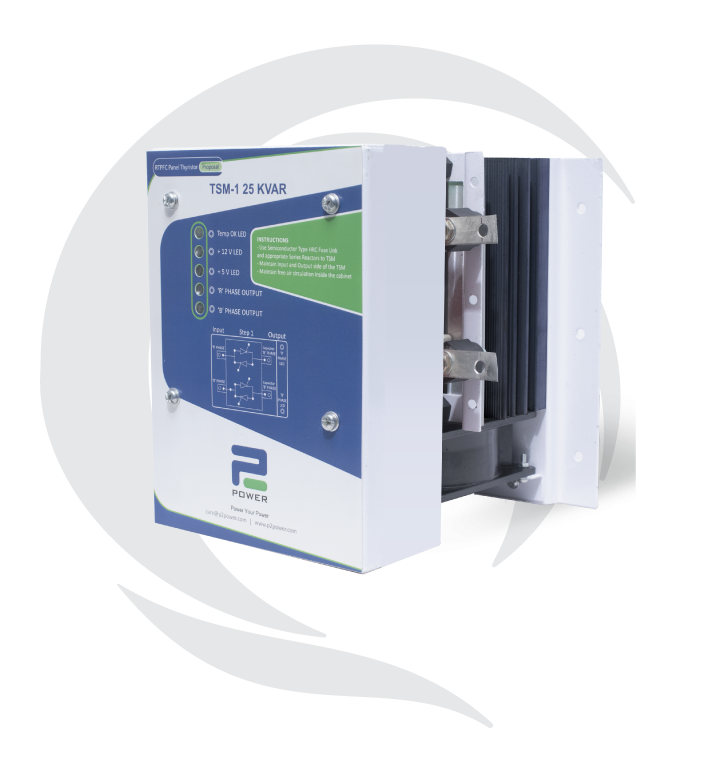

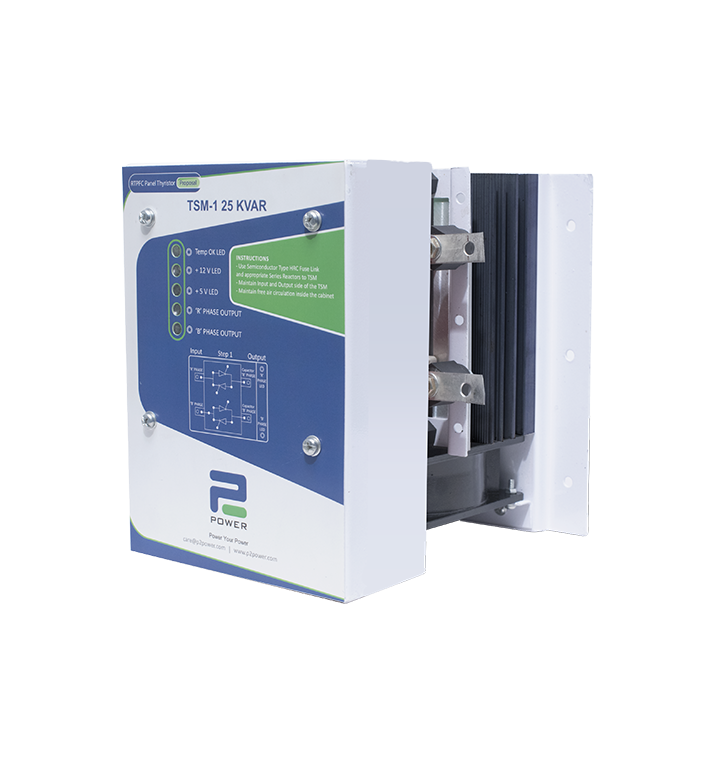

Technical Specifications
| Rated System Voltage | 400V AC / 440V AC / 690V AC | ||||||
| Operating Frequency | 50 Hz / 60 Hz | ||||||
| Available Ratings (in KVAR) | 10 | 15 | 20 | 25 | 50 | 75 | 100 |
| Maximum SwitchingCurrent | 75 A | ||||||
| Peak Inverse Voltage (PIV) | 1800 V / 2200 V | ||||||
| Response Time | ≤ 5 ms | ||||||
| Re-switching Time | ≥ 60 ms | ||||||
| Power Losses | PL = 2.0 × I (A) | ||||||
| Protection Method | High-speed semiconductor fuse / HRC Fuse | ||||||
| Control Input Signal | 220V AC | ||||||
| Cooling Method | Forced air cooling | ||||||
| Mounting Orientation | Vertical | ||||||
| Power Circuit Connection | Left and Right busbar connection | ||||||
| Approximate Weight | <5 kg | ||||||
| Operating TemperatureRange | -10 °C to +55 °C | ||||||
| LED Indication | Temp Ok, +12V, +5V, R phase output, B phase output | ||||||
| Thermal Reset Condition | Temperature switch at 80℃ | ||||||
