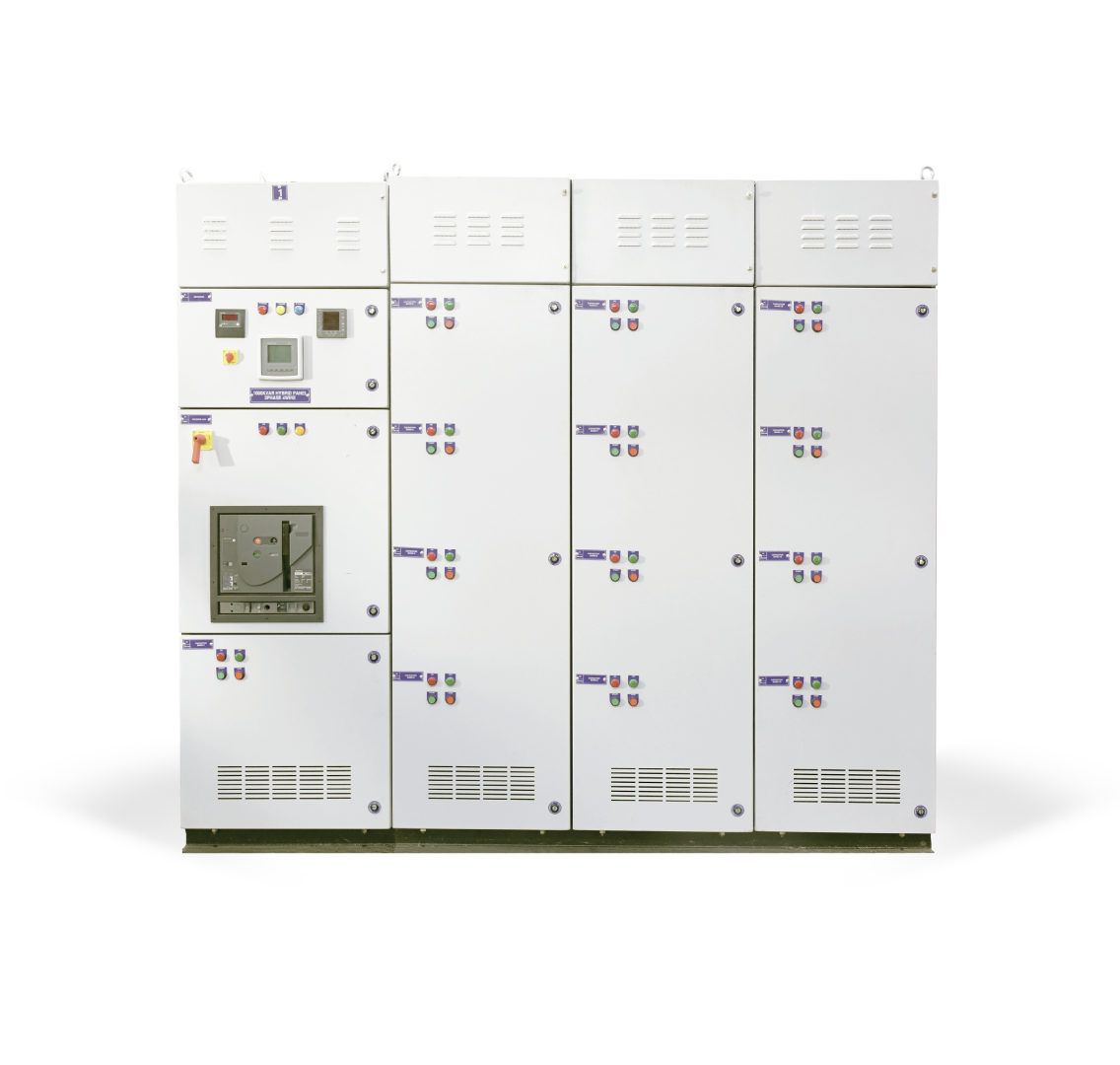

Realtime Power Factor Correction(RTPFC)

Installed with cooling system, Zero crossing detection in thyristor modules

Contact us
KEY FEATURES
Installed with cooling system.
Zero crossing detection in thyristor modules.
Detuned reactor used along with capacitor.
Single and multi stage configuration.
Switched and fixed filter bank variants.
IoT enabled system.

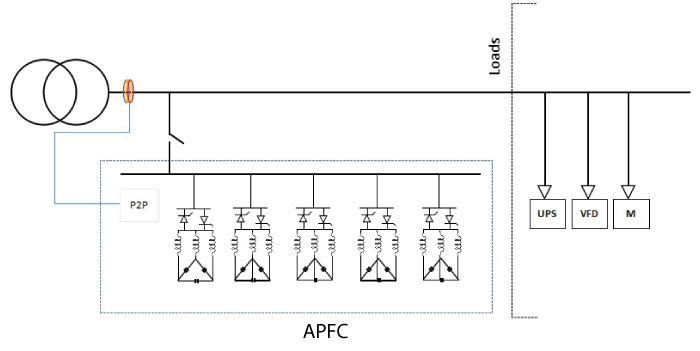

How it works?

P2 Power Smart real time PFC is the latest technology in PF correction though smart thyristor modules. It is used in industries with stable as well as fluctuating load. The system is a combination of AC capacitors and detuned reactors controlled through thryristors or contactors as per user requirement. The thyristors and contactors are controlled through a smart controller based on the reactive requirement of the load.

TECHNICAL Specifications

DESCRIPTION
Specification Required Tolerance
Auxiliary Supply 230V -25% to+ 25%
Measurement Voltage 440V/220V/110V (3Ph. 4wire) -25% to +10%
Switching Type 1A/5A User Defined (Programmable)
No. of Steps 04, 08, 12, 16, 20, 24 Nos -
Supply Frequency 50Hz +/- 5Hz
Operating temperature 0 to 50°C -
Storage temperature -0 to 75°C -
Automatic Synchronization giving correct results even for wrong connection of CT Required[Optional] -
APFC Relay
  • AVRN, VYN, VBN, VRY, VYB, VBR, Average V
  • Load Current ( IR, IY, IB, Average I)
  • Capacitor Current ( IRY, IYB, IBR, Average I)
  • Power Factor (PFR, PFY, PFB, Average PF)
  • Active Power (kWR, kWY, kWB, Total kW)
  • Apparent Power (KVAR, KVAY, KVAB, Total KVA)
  • Inductive Reactive Power (KVARR, KVARY, KVARB, Total KVAR)
  • Capacitive Reactive Power (KVARR, KVARY, KVARB, Total KVAR)
  • Energy parameter (kWhR, kWhY, kWhB, Total kWh, KVAhR , KVAhY, KVAhB, Total KVAh, LKVARhR, LKVARhY, LKVARhB, Total LKVARh, CKVARhR, CKVARhY, CKVARhB, Total CKVARh)
  • Voltage, Load Current and Capacitor Current THD with odd Harmonic coeff. Up to 15th Harmonic order
  • Load PF and Load KVA
-
Mode of Switching Auto / Manual / Programme. /Standby User Defined (Programmable)
Communication Port RS-232 / RS-485.(Front fascia) -
Logging data Hourly Record, Fault Record and Daily Record -
Feedback from steps Required Optional
Protections On site settable – optional
  • Over / Under Voltage
  • Capacitor Over / Under current
  • Capacitor current unbalance
  • Capacitor Current THD
  • Over / Under Frequency
  • Load Unbalance
  • Over / Under Load
  • Over Temperature
  • Out of steps
  • User Defined (Programmable)
  • User Defined (Programmable)
  • User Defined (Programmable)
  • User Defined (Programmable)
  • User Defined (Programmable)
  • User Defined (Programmable)
  • User Defined (Programmable)
  • User Defined (Programmable)
  • User Defined (Programmable)
  • User Defined (Programmable)
Time Delay Required User Defined (Programmable)
