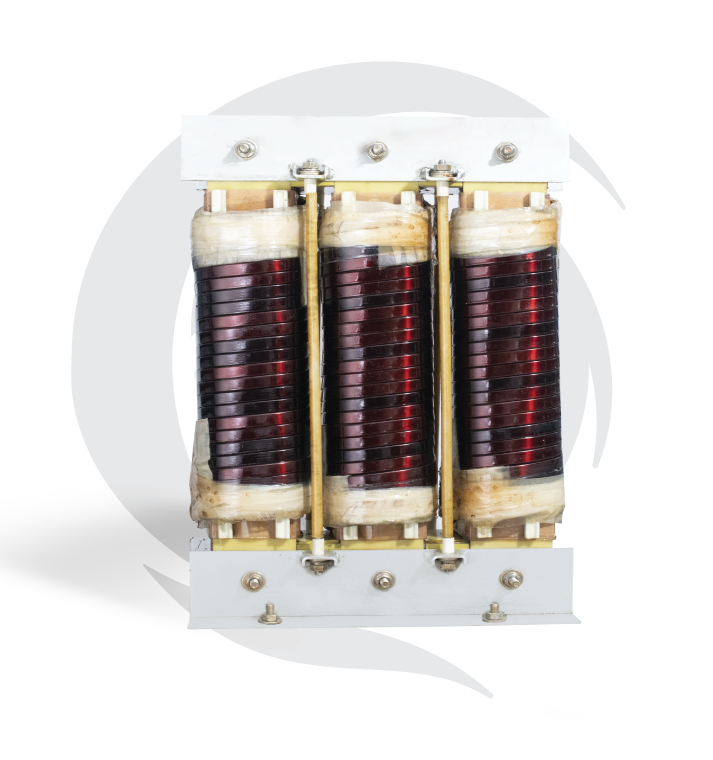

Output AC Filter/Input AC Filter

P2 Power Output AC filter are used to inhibit variable frequency drive surge and reduce high frequency switching on the output between the VFD and the motor. P2 Power Input AC filter are for variable frequency drive input. It is designed to reduce the input side current harmonics. The current harmonics result from the variable frequency drive AC to DC conversion.

KEY FEATURES

Indoor installation – Wall mount or floor

Available for 3 or 1 Phase

2-16 KHZ Switching Frequency

Cooling methods – Air cooling exhaust & free air convention

Works normally at an altitude of <=2000m

Protection: IP00

Available up to 1500A and rated for installation voltages up to 690VAC

Comply with the EN 61800-3

Rated frequencies are 50 or 60 Hz

Made from high-grade materials

Reduces current harmonic distortion

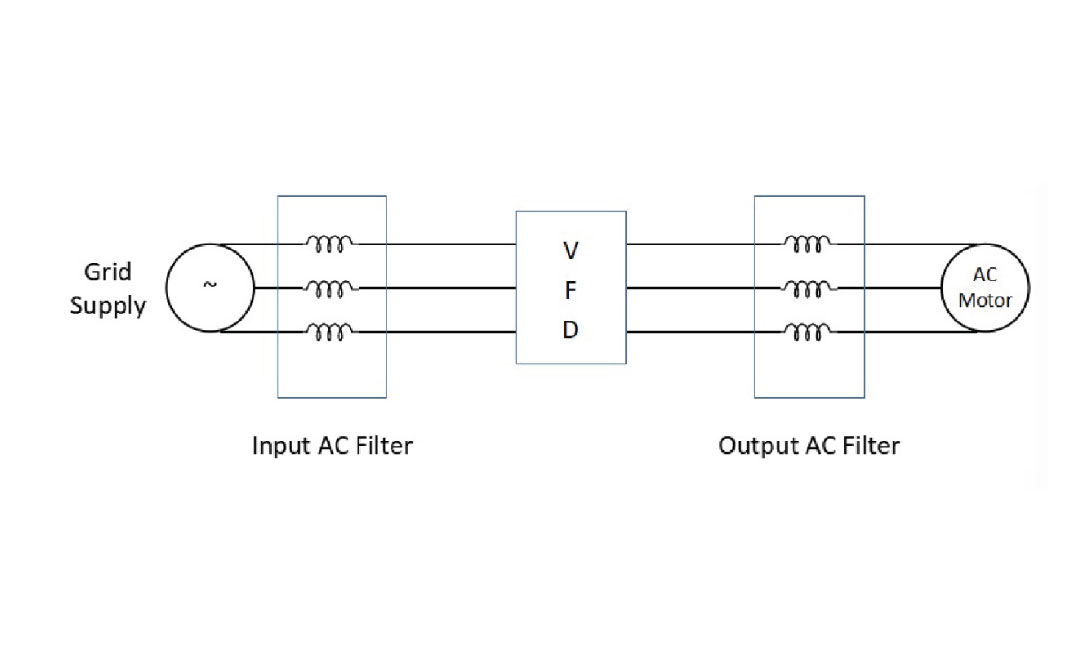

How it works?

TECHNICAL Specifications

Input AC Filter

DESCRIPTION
Reference Standards	IS-5553(Part 1-8)/ IEC 60076-6
Percentage Impedance	As per requirement
Linearity	110%
Tolerance on Inductance	+/-5%
Rated Voltage	415V
Insulation Class	H (180 ̊C)
Temperature Rise	100 ̊C
Rated Frequency	50Hz
Ambient Temperature	50 ̊C Max.
Temperature Protection	150 ̊C Thermal Cutout
Dielectric Strength	3KV
Lamination/Core	Iron powder core
Winding Material	Copper
Connection	Series with VFD (input)
VFD Rating (kW)	1.5kW to 850kW (as per requirement)

Output AC Filter

DESCRIPTION
Nominal operating voltage	3x500 VAC
Rated operating voltage	3x550 VAC
Rated currents	12 to 1100 A @ 50°C
Motor frequency	0...60 Hz (with derating up to 120 Hz)
Switching frequency	2...16 kHz, depending on motor cable length and motor frequency
Typical dv/dt reduction	Factor 8 to 12
Max. peak voltage	≤1000 V
Voltage drop	<3 V @ 50 Hz
Ambient temperature range	-25°C to +50°C fully operational +50°C to +100°C with derating* -25°C to +100°C transport and storage
Overload capability	1.5 x rated current for 1 minute, ones per hour
Protection category	IP 00
Design corresponding to	UL 61800-5-1, EN 61800-5-1, EN 61558-2-20 or EN 60076-6
* Iderated = Inominal􏰁((Tmax-Tamb)/(Tmax-Tnominal)) = Inom􏰁((100°C-Tamb)/50°C)
