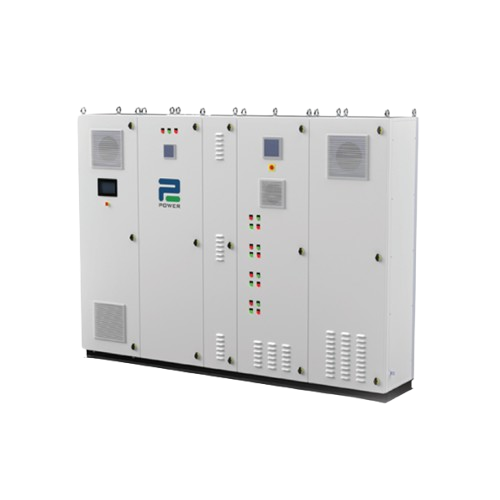

Hybrid Power Factor Correction(HPFC)

Unique priority selection feature to allow easy, on-site re-configuration for maximum flexibility and optimum capacity utilization. The major feature of an integrated solution is that the acitve filter not only does harmonic mitigation but also takes care of instantaneous requirement of reactive above the passive part and ensures the most accurate and precise compensation currently possible with a PF correction system.

Contact us
KEY FEATURES
Stepless Reactive Power Compensation (Top priority).
Harmonic Mitigation (lower priority).
Load Balancing (lower priority).
Neutral Correction (lower priority).

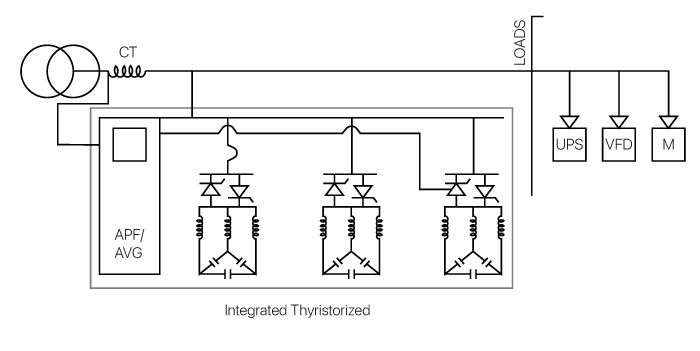

How it works?

P2 Power Integrated Hybrid Power Factor Correction system is the most cost-effective solution for Total Power Quality Management. P2 Power HPFC solution perfectly combines the superior performance benefits of Active Power Filter or Active VAR Generator with the cost effectiveness of traditional Passive solutions in an economical and compact offering. HPFC can be used as a direct replacement of traditional APFC solutions with the added benefits of Harmonic Mitigation, Load Balancing, and Neutral Correction, making it an Universal current compensa- tion solution for all power consumers.

TECHNICAL Specifications

INPUT
Models P2P-HPFC3 P2P-HPFC3+N
Grid Voltage (+10/-15%) 415~690 Urms 415 Urms
Grid Frequency 50Hz (+/-)5% (60Hz on request)
Inverter Technologies 3-level | 2-level (on request)
Hybrid Controller 32-bit Digital Signal Processor
Passive Controller Integrated P2 Power Smart Hybrid PFC Controller
Reactive Compensation Both Leading*/Lagging
Load Balancing* Yes (negative sequence)
Neutral Compensation* N.A. Yes
Harmonic Range* As per active filter on AVG specification
Individual Harmonic Selection Available
Feature Selection On-site Priority selection settings for Optimum capacity utilization
Configuration (typical)/td> Reactive (1st Priority)
IGBT Technology Heavy Duty Module IGBTs
Passive Technology Heavy Duty Detuned APP/MPP Capacitors (based on request)
Models (Active : Passive) 20:80 | 40:60 | 50:50** | 60:40**
CT Secondary 5A
Interface (Communication) As per APF MODBUS TCP, USB, CAN (Internal), BACnet*, Probus*
Protection Class IP20, 31, 42 and higher on request
Cooling Forced air cooling
Overheating Protection Yes
Cable Entry Bottom|Top (on request)
Ambient Temperature upto 45 Deg C (55 Deg C with derating)with adequate ventilation
Relative Humidity 95% (Non condensing)
Maximum Operating Altitude 1500 m
Acoustic Noise (at 1m) ≤ 65 dB
P2 Power Solution offers the most advanced HMI in the industry
Human Machine Interface
  • 7" LCD touch screen with 65k colors
  • IP66 front panel
  • Easy and Intuitive Navigation Screen
  • Toggle switch makes it easy to turn the system On/Off instantly and reliably
  • All currents, voltages, power, filter parameters
  • Phase currents, Fundamental currents, iTHD, iTDD, unbalance
  • Phasevoltages,Fundamentalvoltages,Linevoltages, unbalance, vTHD, Frequency unbalance, vTHD, Frequency
  • Allphase+totalpower(kW,kVAr,kVA),dPF,PF
  • All filter currents, stack temperatures, utilization, DC voltages Filter runtime, Fan runtime
Hardware Protections MCCB, Fuses, Gate Driver Protection for IGBT, Contractor abnormal operation sensing, Over temperature cutoff, Single phasing detection
Software Protections DC Over Voltage, Over Current, No Synchronization, Voltage High/Low, Improper Phase Sequence, Temperature de-rating
Certifications ISO 45001:2018 | ISO 27001:2013 | ISO 9001:2015 | ISO 14001:2015 | CE | TUV
