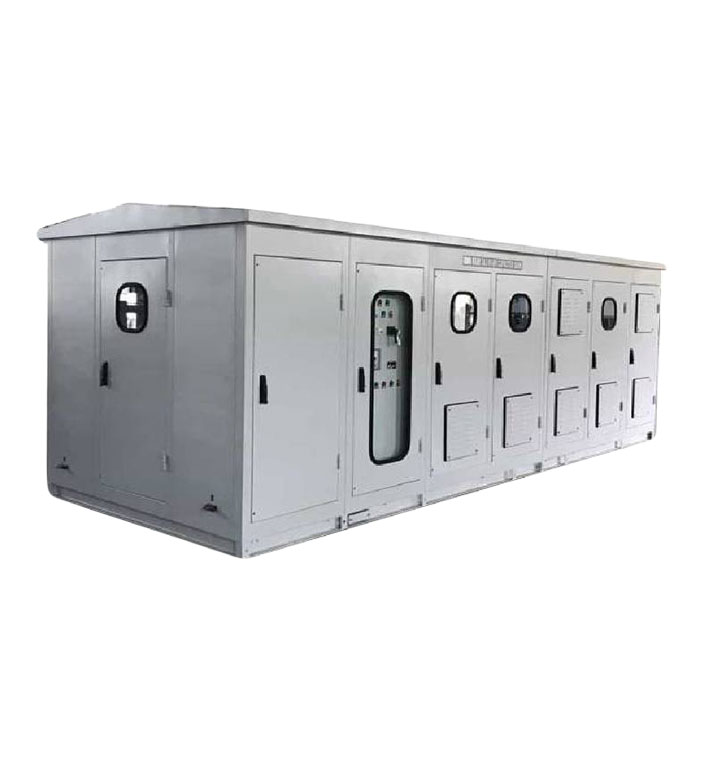

HT APFC PANEL

An HT APFC (Automatic Power Factor Correction) Capacitor Panel is an electrical system designed to optimize the power factor of a distribution network. It helps to resolve low power factor problems, particularly in industrial and commercial applications. These panels automatically regulate and adjust the connection of capacitors to the electrical system to enhance the power factor. Resulting in more efficient energy use, reduced energy losses, and greater system capacity.

Contact us
KEY FEATURES
Automatic PF Correction: Ensures power factor correction is automated for efficiency.
Customised designed and manufactured according to individual specifications.
Trouble-Free Installation: Designed for easy installation without hassles.
Equipped with advanced vacuum contactors for switching.
Cost-Effective: Offers economic benefits for large-scale installations.
Lower Footprint
Higher ROI through energy savings and efficiency.
Customised Design
Separate Control Units
Designed for 3.3 kV, 6.6 kV, 11 kV, and limited use in 33 kV networks for bus-level compensation of reactive power.
Used in Distribution Networks
Limited Switching Operations for Higher Voltage Networks

TECHNICAL Specifications

INPUT
Models P2P-HT APFC
Grid Voltage (+10/-15%) 6.6kV- 11kV
Grid Frequency 50Hz (60Hz)on request
Short time Withstand 1sec
Busbar Al/Cu
Degree of Protection As per Customer’s Request
Harmonic Range Detuned frequencies of series reactor 0.2%, 1% and 6%
Passive Technology HT Capacitor
Passive Controller Microprocessor based APFC Relay
Reactor Air Core(3P)/Iron Core ( 1P)
Communication Yes, Available on followingRS485 Modbus RS232 IEC61850 (Open Protocol) through GPS Modem Wireless through GSM
Ambient Temperature 50°C
Relative Humidity 95%
Maximum Operating Altitude 1000m above sea level
Electrical Protections MCB. Fuses, Isolator
Applicable standard
